BOLD – Privacy Door Handle – Nickel

Installation Instruction Video

PRM-201 – Privacy Mortice Drill Guide – PDF

BOLD series – Technical Specs – PDF

BOLD Privacy – Part List & Instruction – PDF

If you are looking for door locks that are durable, secured whilst adding modern and luxurious touch to your home, look no further. The BOLD series privacy lockset comes as a set of 2 nickel door handles, each of measures approximately 170mm in length, with a depth after installation of 54 mm. Designer handles merge seamlessly with the rosettes to create a minimal look while the levers are crafted horizontally with soft curved edges for a comfort grip. This sunset-resembled series is finished in contemporary Nickel which gives a slight gloss to the lock.

Available in Entrance, Privacy and Passage functionalities, the BOLD series were crafted to suit both left- and right-handed doors, hence are perfect for any Australian home project. The lock structure is backed up by our 5-year warranty.

Note: this product listing is for the Privacy function (#) only. For the BOLD series in Entrance function, click here, in Passage function, click here.

The Bold Entrance door handle. Photo and project by Joanne Galea from Style & Harmony Interior Design (IG @style.harmoney)

What in the box:

• A pair of BOLD series Nickel door handles
• A pair of 50mm rosettes.
• A pair of 50mm privacy knobs. (*)
• Privacy mortice lock (model PRM-201) (see below).
• Matching strike plate.
• Screws, pins, allen key and other required hardware.

Handle Specifications:

• Function: Privacy
• Handle Weight: 350g (each)

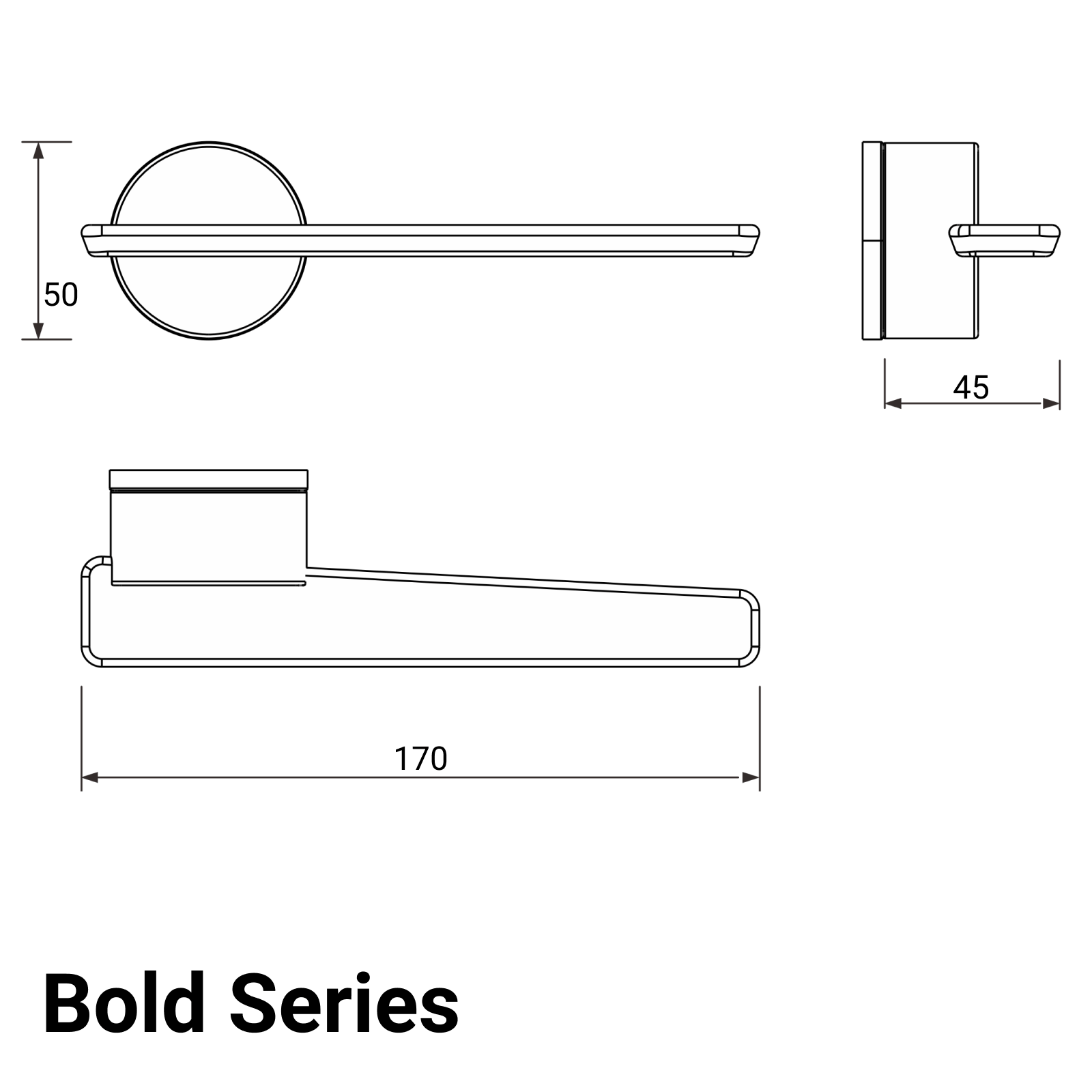

• Handle Dimension: 170mm x 50mm x 45mm (Length x Height x Depth)
• Rosette Dimension: 50mm x 9mm (Diameter x Depth)
• Privacy Knob Dimension: 50mm x9mm (Diameter x Depth)
• Material: Zinc Alloy.
• Finish: Nickel.

Privacy Mortice Lock PRM-201 Specifications:

• Faceplate dimension: 3mm x 22mm x 240mm (thickness x width x height)
• Backset distance: 55mm.
• Centre distance: 78mm.
• Weight: 570g
• Heavy duty steel case.
• Reversible 31mm latchbolt to allow universal door configuration (left-handed or right-handed, in-swing or out-swing, handles below or above privacy knobs) (See video below)
• 35mm deadbolt
• Suit door thickness 35mm to 55mm

(*) Door can be locked from inside by turning a knob. Can be released from outside with a coin in case of an unexpected event.

(#) Entrance locks are used on external doors that allow users to enter the house (i.e. front doors, back doors, or doors to the side of the house). It requires a key to unlock from the outside and usually can be locked from the inside. Some houses uses entrance locks for bedrooms with valuable assets for extra security.

Privacy locks are used for internal doors where users need some sort of privacy (i.e. bedrooms, bathroom…). It can be locked from inside, although users can gain access from outside with a special tool (i.e. a coin, a pin…) in case of an emergency or an unexpected event.

Passage locks are used for internal doors where users just need the doors to stay shut with no privacy required (i.e. study, laundry, hall…). Passage door can be accessed from both side and stays latched when shut.
